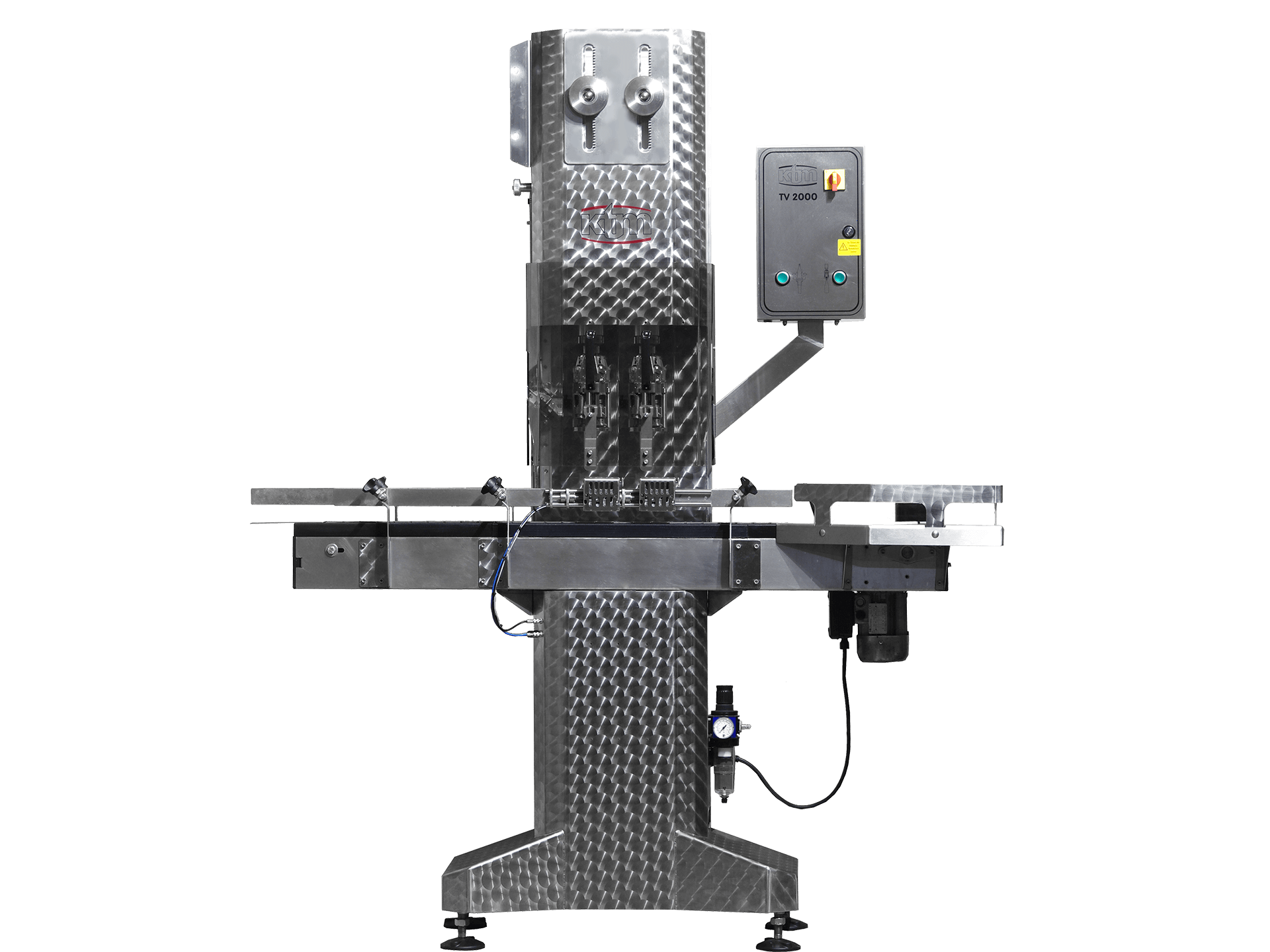

Fully automatic capper TV2000 Twin
Combination machine with two ready-to-use capping stations - meaning no time is needed to convert from one cap type to another
- Easy to adjust bottle diameter and bottle height without format parts
- Compact construction for easy integration into existing systems from third party suppliers
- Uses high-quality industrial capping heads with pneumatic cylinder for professional capping
- A faster and less complicated way of assembling and dismantling the belt and sorting unit
- Machine is well suited to mobile usage (e.g. contract bottling operations)
- Made entirely from stainless steel for a long service life and ease of cleaning
- Quick change bracket for sorter
- A good addition to the KTM bottle fillers TA10/14/16
Variants
The following variants can be provided in any combination:
- -S for ShortCaps (MCA, PP28, etc)
- -L for LongCap (Stelvin / BVS Ø30x60, etc)
- -C for crown caps (Ø26, Ø29, etc)
- -K for natural corks
- -T for twist-off
Capper TV2000LX
The special variant -LX for LongCaps with an internal thread (Stelvin-Lux, WAK, Glastwister) seals the cap in two steps. Other caps, such as plastic caps, Twist and Plop, T-Corks, etc. are available upon request.
Accessories
- Belt extensions
- Cover safety prompt
- Jam reporting sensors with automatic switch-off function
- Collection/feed table
- CO2 superimposed with or without level control
- Belt extension for inlet and outlet
- Transport wheels and frame
Technical data
| TV2000 Twin | |
| Electrical connection | 230VAC |
| Dimensions (LxWxH) [mm] | 500 x 900 x 2000 |
| Weight [kg] | 150 |
| Effective air consumption [l/min] | 200 |
| Input pressure [bar] | 6 |
| Output up to [bottles/h] | 2500 |
| Bottle height [mm] | 160-400 |
| Max. bottle diameter [mm] | 120 |
